Page 4 - Manual – Countertop Reverse Osmosis System G21 – Osmo

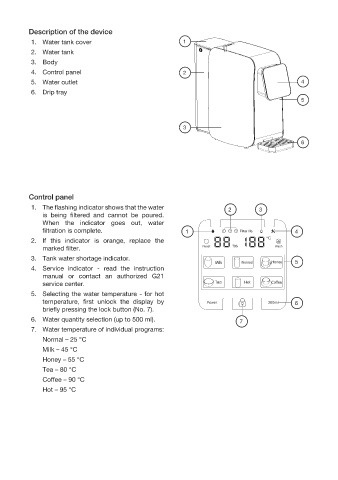

Description of the device
1. Water tank cover 1
2. Water tank
3. Body
4. Control panel 2
5. Water outlet 4
6. Drip tray
5

3

6
Control panel
1. The flashing indicator shows that the water is being filtered and cannot be poured. When the
indicator goes out, water filtration is complete.
2. If this indicator is orange, replace the marked filter.
3. Tank water shortage indicator.
4. Service indicator - read the instruction manual or contact an authorized G21 service center.
5. Selecting the water temperature - for hot temperature, first unlock the display by briefly pressing
the lock button (No. 7).
6. Quick selection of water quantity - 300 ml.
To fill 300 ml of water, press the button marked 300 ml. The device will automatically fill
exactly this volume.
To manually control the amount of water, press the selected program and press the button
again at the desired moment - this will stop the water dispensing. The maximum possible
volume of water dispensed is 500 ml. This function allows you to adjust the amount of water
to your current needs - whether you are filling a glass, mug or bottle.
7. Display lock - press and hold this button if you want to select the Tea, Hot or Coffee program
8. Wash program - rinse the device
9. TDS value indicator - more about TDS, i.e. the amount of dissolved substances in water, see the
paragraph below.

9
2 3
Water temperature of individual programs:
Normal – water at the temperature that was 1 4
filled into the tank 8
Milk – 45 °C
5
Honey – 55 °C
Tea – 80 °C
Coffee – 90 °C
Hot – 100 °C 6

7
