Page 44 - Manual – Louvered Outdoor Pergola G21 – Austin 4x4m
P. 44

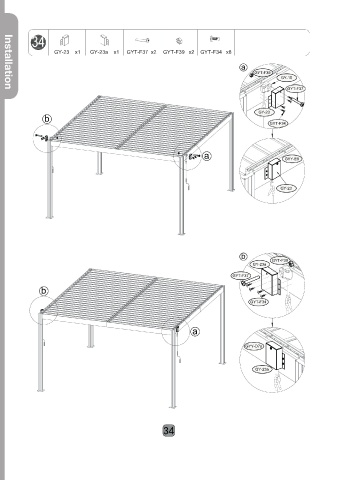

GY-23  x1  GY-23a  x1  GYT-F37 x2  GYT-F39 x2  GYT-F34 x8
                                                             a
                                                                GYT-F39
                                                                       GY-15
                                                                        GYT-F37
  Installation

                                                                 GY-23
            b
                                                                    GYT-F34


                                                    a                   GYY-E8




                                                                       GY-23








                                                             b
                                                                GY-23a  GYT-F39
                                                           GYT-F37
           b
                                                               GYT-F34


                                                 a

                                                              GYY-D7a


                                                                GY-23a







                                          34
